Quadguard Crash Cushion

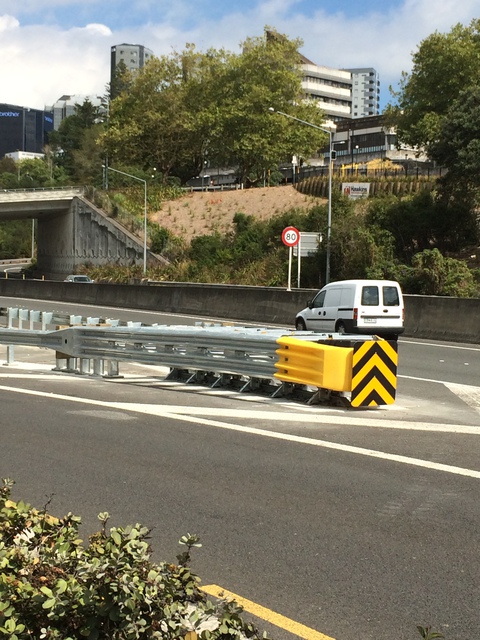

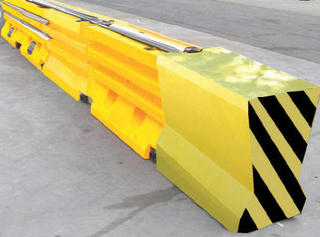

The Quadguard family of End Treatments offers the latest technology for sheilding hazards from the permanent system to the CZ range for permanent to temporary uses. For permanent applications the Quadguard has many differnet sizes between 610mm wide to 2285mm wide.
The Quadguard system has been tested to NCHRP350, Test Level 3 performance for redirective, non-gating attenuators and is NZTA compliant and approved.
Each section holds an energy absorbing replaceable cartridge which simlifies the maintence requirements in case of an inpact.
The Quadguard system has been tested to NCHRP350, Test Level 3 performance for redirective, non-gating attenuators and is NZTA compliant and approved.
Each section holds an energy absorbing replaceable cartridge which simlifies the maintence requirements in case of an inpact.
Information
KEY FEATURES
- Compliant to NCHRP350, AS/NZS 3845:1999
- Compact, modular design (one to 12 bays) for design speeds from 40 km/h to 120 km/h.
- Able to shield hazards up to 2285mm wide
- Monorail base eliminates the need for anchoring chains and tension cable-easier installation.
- Simplified backups-choose from Tension Strut or Concrete.
- Multiple transition types available.
- Fully tested transition panels.
- Relocatable QuadGuard CZ systems available.
| Bays | Design Speed | 610mm Wide | System Length | Effective Length | Pad Length | Number of Cartridges | |
| (KPH) | (Model #) | (Metres) | (Metres) | (Metres) | TYPE I | TYPE II | |
| 1 | 40 | QS2401Y | 2.16 | 1.73 | 2.74 | 2 | 0 |
| 2 | 60 | QS2402Y | 3.08 | 2.64 | 2.74 | 2 | 1 |
| 3 | 70 | QS2403Y | 4 | 3.56 | 3.66 | 3 | 1 |
| 4 | 80 | QS2404Y | 4.91 | 4.47 | 4.57 | 3 | 2 |
| 5 | 90 | QS2405Y | 5.83 | 5.38 | 5.49 | 4 | 2 |
| 6 | 100 | QS2406Y | 6.74 | 6.3 | 6.4 | 4 | 3 |
| 7 | 105 | QS2407Y | 7.65 | 7.21 | 7.32 | 4 | 4 |
| 8 | 110 | QS2408Y | 8.57 | 8.13 | 8.23 | 4 | 5 |
| 9 | 115 | QS2409Y | 9.49 | 9.04 | 9.14 | 4 | 6 |
| 10 | 120 | QS2410Y | 10.4 | 9.96 | 10.06 | 5 | 6 |
| 11 | 120 | QS2411Y | 11.32 | 10.87 | 10.97 | 5 | 7 |
| 12 | 120 | QS2412Y | 12.23 | 11.79 | 11.89 | 5 | 8 |
